Navigating the Underground: An Examination of Hydraulic Pump
Functionality in Subterranean Vehicles
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic
pumps
· 1 year warranty
Description:

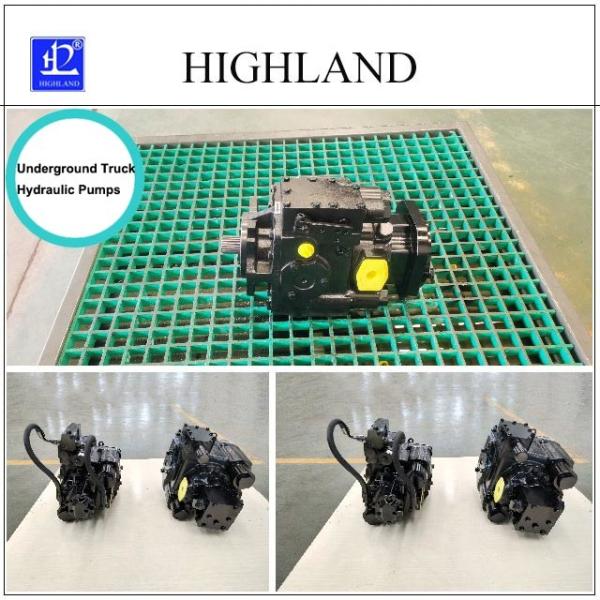

A crucial component in the hydraulic systems of underground trucks,
Underground Truck Hydraulic Pumps convert mechanical energy into
hydraulic energy. This energy is then used to drive various truck
systems, such as the lifting mechanism of a dump truck or the
steering system of a loader. Constructed for durability and
reliability in extreme conditions, these pumps are essential for
the functionality of heavy-duty underground vehicles.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 |
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | | 66 |
Notices:
Adherence to Safety Standards: Given the high-risk environment in
which Underground Truck Hydraulic Pumps operate, strict adherence
to safety standards is critical. Regular inspections should be
carried out to detect any potential leaks or mechanical failures
that could lead to hazardous situations underground. Any anomalies
should be addressed immediately to maintain safe operation.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery
underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery
underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is
also optional.
Q5. How to proceed an order for pharmaceutical machinery
underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control
system.Secondly, we will inspect the defective pump and motor, and
then respond according to the actual situation.
