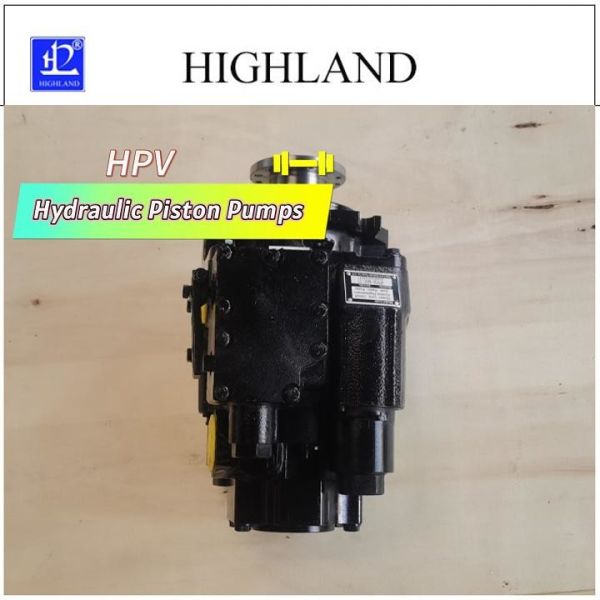

Highland High Efficiency Hydraulic Piston Pumps With 42Mpa Max
Pressure
Product Description:
Highland Hydraulic piston pump is a critical part of the hydraulic
system. It uses a plunger to cycle in the cylinder, changing the
volume of the sealed enclosed chamber, thus creating suction and
pressure.
Highland Hydraulic piston pumps are lauded for their high rated
pressure, small overall size, superior efficiency, and ease in flow
control adjustment. They can be used in applications which need to
combine high pressure, high flow, and a variable flow rate.
Features:
Our hydraulic axial piston variable displacement pumps are well
engineered and easy to handle. All bearings of this Variable Axial
Piston Pumps are mechanical tapered roller bearing, which can load
heavy external axial forces.
Furthermore, this hydraulic pumps can be connected with other
additional pumps when operated mechanically, and its servo
displacement can control and keep the angle of swash plate and pump
displacement. Upon release of the control handle, the swash plate
will automatically return to the zero position and the flow reduces
to zero.
Additionally, this hydraulic pumps has remarkable shaft oil seals
performance, even at the lowest temperature and high case pressure.
Servo valve of piston pump can connect function regulators and
remote control systems, it provides convenience for overhaul.
Finally, this axial piston pumps can be easy to maintain and can be
disassembled and assembled by standard tools. All components are
replaceable.
Technical Parameters:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Hydraulic piston pumps are widely used in high pressure, high flow,
and high-power systems, as well as occasions where adjustment of
flow is needed, like agricultural machinery, construction
machinery, mining and metallurgical machinery, and ships. It has an
important role in these fields.
Moreover, its reliable performance is advantageous in petroleum
exploration and development, petrochemical, pharmaceutical, atomic
energy science, environmental science, process equipment,
experimental equipment, and even aerospace industries and other
high tech fields.
FAQ: Hydraulic Piston Pumps
- Q: What is the brand name of the Hydraulic Piston Pumps?
A: The brand name is HIGHLAND. - Q: What is the model number of the Hydraulic Piston Pumps?
A: The model number is HPV110. - Q: Where is the Hydraulic Piston Pumps produced?
A: The Hydraulic Piston Pumps is produced in Dezhou, China. - Q: What certification does the Hydraulic Piston Pumps have?
A: The Hydraulic Piston Pumps have a PATENT and ISO CERTIFICATE. - Q: How many Sets can be ordered at minimum?
A: The minimum order quantity for Hydraulic Piston Pumps is 5 Sets. - Q: How much does each Hydraulic Piston Pumps Set cost?
A: The cost of each Hydraulic Piston Pumps Set is USD900-1400. - Q: How is the Hydraulic Piston Pumps Set packaged?
A: The Hydraulic Piston Pumps Set is packaged in a Plywood Case. - Q: How long does it take for the Hydraulic Piston Pumps Set to be
delivered?
A: The delivery time for the Hydraulic Piston Pumps Set is 10
Working Days. - Q: What payment terms are available for the Hydraulic Piston Pumps
Set?
A: The payment terms available for the Hydraulic Piston Pumps Set
are T/T, Western Union. - Q: How many Sets of Hydraulic Piston Pumps can be supplied per
month?
A: The supply ability for the Hydraulic Piston Pumps is 400
Sets/Month.
