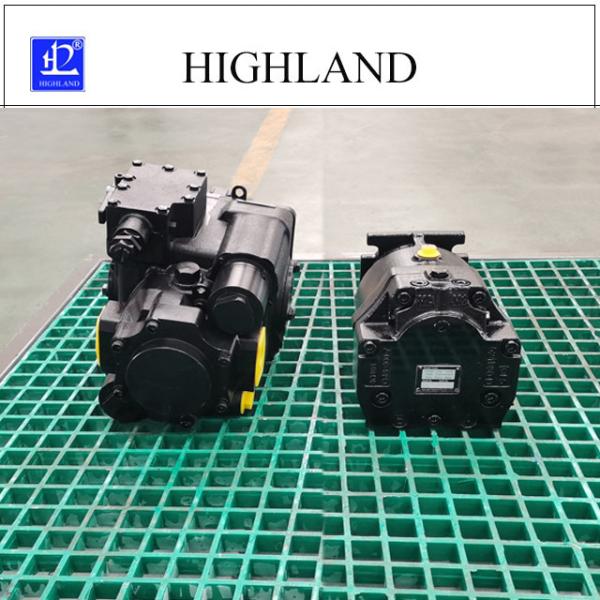

Highland HPV110 Electro Proportional Control Hydraulic Piston Pumps
Hydraulic piston pump introduction:
Highland HPV110 hydraulic piston pumps have hydro mechannical
control mode and electro proportional control mode. Our hydraulic
piston pump has high pressure, compact structure, high efficiency and
convenient flow adjustment, it can be used in systems that require
high pressure, large flow, and high power and in occasions where
the flow needs to be adjusted, such as agricultural machinery,
construction machinery, mining and metallurgical machinery, and
shipbuilding industry etc other wide range of applications.
HPV110 Hydraulic piston pumps features:
Hydraulic piston pumps are well engineered and easy to handle.
Bearings of piston pumps are all tapered roller bearing, which can
load heavy external axial forces.
When hydraulic piston pumps operated mechanically, the servo
displacement can control and keep the angle of swash plate and pump
displacement.
HPV110 Hydraulic piston pumps technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38
|
Highland after-sale service:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Free door-to-door service to solve difficult after-sales problems;
Fast delivery and good service
A number of invention patents and utility model patent
certification, the key components of imported raw materials; Order
7 ~ 20 days fast delivery, 1 year after sales maintenance cycle,
for your risk.
FAQ of hydraulic piston pumps:
Q1: Could I have a sample order of hydraulic piston pumps?
A: Yes, we welcome sample order of hydraulic piston pump to test
and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and
sea shipping also optional.
Q3: Do you offer guarantee for the hydraulic piston pump?
A: Each motor or pump should be tested before shipping, test report
can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston
pumps.
20 years experience in hydraulic industry for oversea and domestic
markets. Main business range is hydraulic piston pumps and motors,
welcome to visit our factory in Dezhou city Shandong province.
Tags: hydraulic piston pumps, HPV110 hydraulic piston pumps,
electro proportional hydraulic pump
