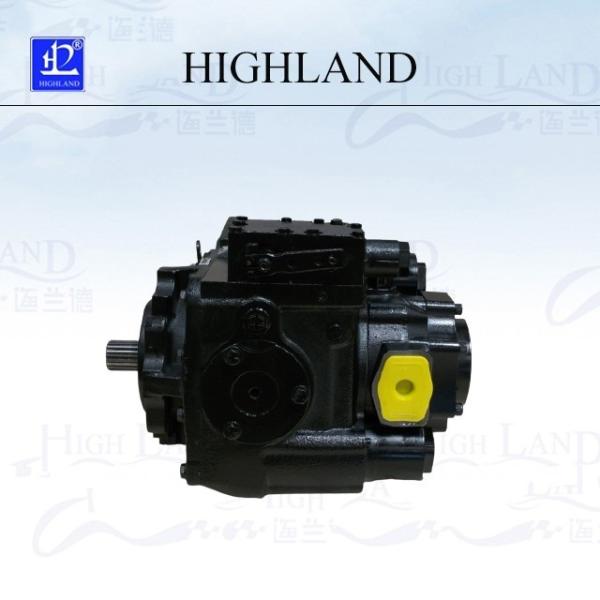

Concrete mixer variable displacement piston pumps long lifetime
Variable displacement piston pumps basic introduction:
Mixer hydraulic pump is to convert the mechanical energy of power
machine into the pressure energy of liquid. The output flow can be
adjusted according to need is called variable pump, the flow can
not be adjusted is called fixed pump. Our mixer hydraulic pump is
variable displacement piston pump.
Mixer piston pumps performance and characteristics:
Series 20 axial piston variable displacement pumps are swash plate
design with variable displacement, and are intended for closed
circuit applications.
The flow rate is proportional to the piston pump input speed and
displacement.
The latter is infinitely adjustable between zero and maximum
displacement.
Flow direction is reversed by tilting the swash plate to the
opposite side of the neutral (zero displacement) position.
Mixer hydraulic piston pump technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 |
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | PV series hydraulic pump hydraulic oil emptying | kg | 45 | 53 | 63 | 78 |
PV series hydraulic motor hydraulic oil emptying | kg | 30 | 34 | 40 | 47 |
Our advantages of mixer hydraulic pump:
- 100% inspection before delivery.
- One year warranty for hydraulic piston pumps.
- MOQ is 1 pc.
- Provide technical guidance for customers.
- Help customer solve hydraulic confusion.
- Preferential factory price, short delivery time.
FAQ of Highland hydraulic pumps:
Q1: Are you trading company or manufacturer ?
A: We are a manufacturer with own plant covering an area of 10,000
square meters. .
Q2: How long is your delivery time?
A: Generally 2 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q3: Could you accept sample order?
A: Yes, we accept sample order for customer to test pump quality.
Q4: How long for your warranty time?
A: 1 Year warranty, each pump will be tested by our hydraulic test
bench before shipping.
Q5: What is your payment term ?
A: Sample order or small value, payment 100% in advance. Big value
order 40% T/T in advance, rest paid before shipment.
